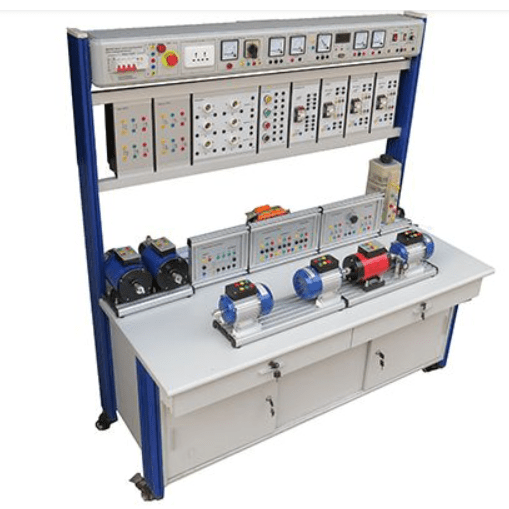

    Transparent Machine Lab
    Home / Electrical Lab

    Transparent Machine Lab

    • Electrical Machine Trainer
    • Servo Motor Linear Control Trainer

    Add to wishlist
    Category: Electrical Lab Tag: Transparent Machine Lab
    • Electrical Machine Trainer
    • Servo Motor Linear Control Trainer
    • Description
    • Reviews (0)

    Brand: CL

    Model: TML-3123

    Pictures are for reference only.

    Specification:
    Single Phase Induction motor
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated input Voltage: 220 V AC (±5%)

    Rated input Current: 0.10A (±5%)

    Rated Speed: 1400 rpm (±5%)

    Rated Power: 22W (±5%)

    Capacitor: 2uF

    Dimension (Length x Diameter): (250mm x 170mm)

    Motor Outside Shaft Length : 35mm(2)



    DC Permanent magnet motor
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated Voltage: 220 V DC (±5%)

    Rated Current: 0.42A (±5%)

    Rated Speed: 3300 rpm (±5%)

    Rated Power: 92.4 W (±5%)

    Dimension (Length x Diameter): (150mm x 150mm)

    Motor Outside Shaft Length : 40mm

    DC Shunt wound motor
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated input Voltage: 220 V DC (±5%)

    Rated input Current: 0.7Amp (±5%)

    Shunt field Current: 0.10Amp (±5%)

    Armature Current: 0.60 Amp (±5%)

    Rated Speed: 7000rpm (±5%)

    Rated Power: 154W (±5%)

    Dimension (Length x Diameter): (150mm x 150mm)

    Motor Outside Shaft Length : 40mm

    DC Series wound motor
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated Voltage: 100 V DC (±5%)

    Rated Current: 0.41A (±5%)

    Rated Speed: 6600 rpm (±5%)

    Rated Power: 41W (±5%)

    Dimension (Length x Diameter): (150mm x 150mm)

    Motor Outside Shaft Length : 40mm

    DC Compound wound motor
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Dimension (Length x Diameter): (150mm x 150mm)

    Motor Outside Shaft Length : 45mm

    Short Shunt:

    Rated Voltage: 220V DC (±5%)

    Rated Current: 0.125A (±5%)

    Armature Current 0.055 (±5%)

    Shunt Current: 0.07 (±5%)

    Rated Speed: 1100 rpm (±5%)

    Rated Power: 15W (±5%)

    Long Shunt:

    Rated Input Voltage: 220V DC (±5%)

    Rated Input Current: 0.25A (±5%)

    Rated Speed: 2000 rpm (±5%)

    Rated Power: 30W (±5%)

    Universal motor
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated Input Voltage: 120 V AC/DC (±5%)

    Rated Input Current: 1.0 A AC/DC (±5%)

    Rated Speed: 8400 rpm (AC) (±5%)

    Rated Speed: 10000 rpm (DC) (±5%)

    Rated Power: 120W (±5%)

    Dimension (Length x Diameter): (150mm x 150mm)

    Motor Outside Shaft Length : 40mm

    Three Phase Induction motor (Y-Connection)
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated Input Voltage: 400 V AC (±5%)

    Three Phase 3-wire

    Rated Input Current: 0.085A (±5%)

    Rated Speed: 1450 rpm (±5%)

    Rated Power: 65W (±5%)

    Dimension (Length x Diameter): (250mm x 170mm)

    Motor Outside Shaft Length : 40mm

    Three Phase Rotor winding motor (Y-Connection)
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility
    Rated Input Voltage: 400 V AC (±5%)

    Rotor Excitation Voltage: 50~100V (3-Phase Line to Line)
    Rated Speed: 1500 rpm (±5%)

    Dimension (Length x Diameter): (250mm x 170mm)

    Motor Outside Shaft Length : 40mm

    Synchronous motor (Y-Connection)
    Full Transparent 6mm Thickness Fiber/Acrylic Body

    4mm safety jack Connection facility

    Rated Input Voltage: 400 V AC (±5%)

    Rated Input Current: 0.20A (±5%)

    Rotor Field Excitation Voltage: 50 VDC (±5%)
    Rated Speed: 1500 rpm (±5%)

    Rated Power: 140W (±5%)

    Dimension (Length x Diameter): (260mm x 180mm)

    Motor Outside Shaft Length : 40mm



    Three Phase AC/DC Power Supply:
    Rated Input Voltage: 400 V AC (±5%)

    Three Phase 4-wire

    Rated Output Voltage: 400 V AC (±5%)

    Three Phase 4-wire

    Rated Output Voltage: 0~ 400 V AC (±5%)

    Three Phase 4-wire

    Rated Output Current: 5 AC (±5%)

    Rated Output Voltage: 120 V DC (±5%) ,5Amp

    Rated Output Voltage:0~ 220 V DC (±5%) ,5Amp
    Short Circuit Protection Facility

    4mm safety jack Connection facility

    Air Cooling system facility

    Accessories:
    4mm safety Jack : 1 set
    User Manual: 1 Nos
    Motor Rack : 1 Nos
    Mounted Socket for Power Supply Unit: 1 Set
    With Installation and 7 days Training
