    Basic Electrical Training System
    Home / Electrical Lab

    Basic Sensor Experiment Trainer with Arduino

    • Vending Machine

    Add to wishlist
    Category: Electrical Lab Tag: Basic Sensor Experiment Trainer with Arduino
    • Vending Machine
    • Description
    • Reviews (0)

    Brand: CL

    Model: AES-01

    Pictures are for reference only.

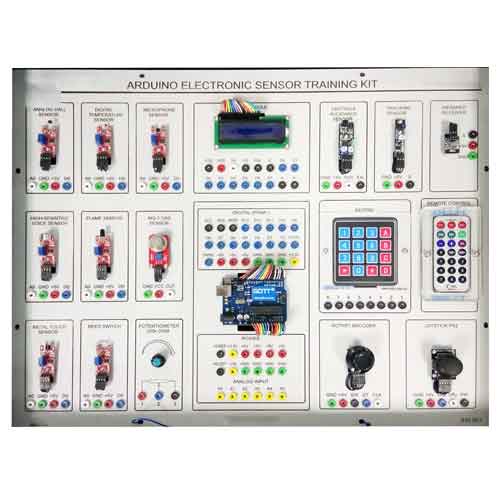

    This Arduino Electronic Sensor Training kit is different from other kits. All the components in this kit are provided in the form of modules which
    integrate some necessary components, such as comparator, resistor, and capacitor and so on. Therefore it is convenient for circuit connection. They
    will output signals directly by connecting Arduino boards. The kit includes all kinds of funny and completed modules for Arduino fans. It can help you
    “control” the physical world with sensors.
    Arduino is a basic single board microcontroller designed to make applications, interactive controls, or environments easily adaptive.
     Consist of 35 projects and 37 modules for you to learn basic knowledge about Arduino.
     with Clear breadboard images and schematic diagrams, and thorough wiring description so you can connect the components easily.
     Comes with the software
     Well-designed briefcase, storing all the components by category after you finish the experiment

    Technical Specifications of Main Unit:
    Ardunio IDE provided
    Completely compatible with Arduino Standard Shield
    Programmable immediately to block program just with basic circuit without wiring
    Designed for wiring to desired pin
    The latest version Ardunio 1.0.5.
    Bread broad and various Powers usable for application
    20 kinds of I/O device and sensor devices
    MCU Board:
    MCU: ATmega2560
    Operating Voltage: 5V
    Input Voltage: 7-12VDC
    Max. Input Voltage: 6-20VDC
    GPIO: 70 pin, current 50mA (Including PWM pin)
    ADC: 16Ch
    Flash Memory: 256Kbyte
    SRAM: 8Kbyte
    EEPROM: 4Kbyte
    Clock: 16Mhz
    Compatible Shield: Compatible with Arduino Shield
    Sensor Board:
    • PIR sensor: PIR motion sensing sensor, adjustable Sensitivity and Response Time
    • Humidity sensor: Measuring Analog output value by Humidity, 0~100% humidity measured
    • Step motor: 1.8°/pulse, Wheel provided
    • DC motor: Output avg. Current 1.2A, max. 3.2A, Wheel provided
    • Sound sensor: Sensing after amplifying noisy around. Microphone
    • Temperature sensor: Digital Temperature Measurement sensor, error 40°C~125°C (±0.5°C)
    • Light sensor: Analog output by brightness, 20 lx ~ 100 lx, connected with ADC
    • Gas sensor: LNG, LPG, Propane, Butane measurable. 2,000~10,000 PPM measurable
    • 3 axis Gyro sensor: Analog output included, measurable of Tilt
    • Buzzer: Operating voltage: 5VDC/Frequency: 2400 +50Hz Current
    • consumption: Max. 35mA/ SPL: Min. 90dB
    • LED: 5PI RED LED 8EA. Controlled with I2C chip
    • RGB LED: Various colors displayable with adjusting brightness of each Red,Green, Blue
    • TEXT LCD: 16×2 Line
    • FND:
    • Piezo sensor: Used as Buzzer or Speaker. Responded to Shock and Sound waves around Capacitance 10nF ± 30%
    • Ultrasonic Distance sensor: NT-TS601 20cm~400cm distance measurable
    • Bluetooth module: Connectable directly with Chip Antenna, Smart phone
    • DC voltage(+12V, +5V, +3.3V)
    • Wiring port (corresponded to no.21 port)
    • Bread board
    • MCU module (compatible with Arduino Shield)
    • 13.56MHz RFID reader
    • WLAN module
    • 16EA Buttons
    Educational content List:
    • AVR Microcontroller
    • Ardnino Development Environment
    • Basic Structure of Arduino Program
    • LED, FND control
    • Text LCD, Buzzer control
    • DC motor control
    • Step motor control
    • Push button control
    • Light sensor, Sound sensor control
    • PIR sensor control
    • Temperature, Humidity and Gas sensor control Ultrasonic Distance sensor
    • Piezo sensor, Gyro sensor control
    • RFID reader test
    • Bluetooth test
    • Wi-Fi test
    Technical Specifications of Climate Control Unit:
    Basic Features:
    • Function: Cooling
    • BTU/hr: 18000
    • Rated Voltage: AC 230V, 50Hz
    • Rated Input Power (W): 1240 Approx.
    • Rated Current (A): 5.45 Approx.
    • Cooling Capacity (W): Minimum 5275
    • EER: 4.25
    • Cooling Features:
    • Compressor Type: Rotary (Inverter)
    • Refrigerant Type: R-32
    • Refrigerant Amount (Kg): 0.61
    • Operating Range: 20°C to 52°C
    • Evaporator Fin Type: Louvered Fin
    • Condenser Type: Micro Channel Condenser
    • Condenser Fin Type: Wave Fin
    • Pipe Length: Minimum 10m
    • Operations:
    • Turbo Mode (Maximum Cooling): Yes
    • ECO Mode (Power Saving): Yes
    • Dry Mode: Yes
    • Fan Mode: Yes
    • Auto Operation: Yes
    • Auto Restart: Yes
    • Comfort Cooling: Yes
    • Air Plasma: Yes
    • Kids Mode: Yes
    • Mold Proof: Yes
    • Hidden Display: Yes
    • Frost Clean: Yes
    • Speed Setting: Yes (Auto, High, Medium, Low)
    • Timer: Yes; Sleep: Yes
    • Remote & Air Deflection:
    • Display Type: LCD
    • Operation/Control: Via IR (Infrared Ray)
    • Child Lock: Yes
    • Temperature Unit Change: Yes (16°C to 31°C)
    • Auto UP-Down Swing: Yes
    • Auto Left-Right Swing: Yes
    • Dimensions & Weights:
    Indoor Dimensions (mm) [L×W×H] Unit: 940 x 320 x 240 Approx.
    Outdoor Dimensions (mm) [L×W×H) Unit: 940 x 370 x 700 Approx.
    Net Weight (Indoor) (Kg) 12.5±1
    Net Weight (Outdoor) (Kg) 37±3
    Compressor Guarantee: Minimum 10 Years
    Spare Parts Support: Minimum 3 Years
    After Sales Service: Minimum | Year (Free)
    User Manual & Official Catalog Must be submitted for climate control unit
    • Warranty: 1 (One) year with services
